FOAM Extruder

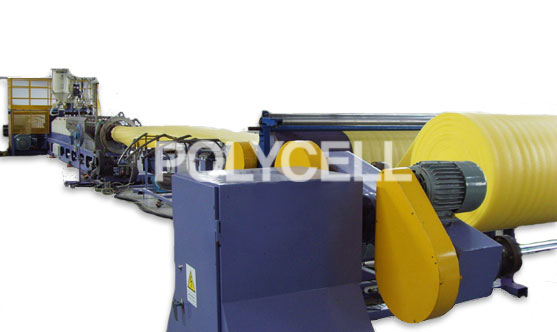

PE Foam Sheet Extruder produces highly qualified PE foam sheet by butane gas foaming method with several materials like Surface Active Agent, Talc Master Batch, Pigment, etc. Also, it is equipped with automatic systems to control each part of the process. Our special new Die-Head can makes sheet with thickness up to 20mm directly. In results, closed-cell polyethylene foams are formed with innumerable cells from Low Density Polyethylene(LDPE) resins expanded by 15-40 times. It has been excellent results in its shock absorbing, moisture-proofing, heat insulating, chemical resistance and easy handling has widely been used for industrial packaging, construction and agricultural purposes. Our PE Foam extruder is designed by Polycell Korea Corporation's own technology to provide high quality and good service to our customers.

specification

specification

ITEM/MODEL	PKC-90	PKC-105	PKC-120	PKC-130	PKC-150	PKC-170
SCREW DIA.(mm)	90	105	120	130	150	170
SHEET WIDTH(mm)	1300	1500	2000	2000	2000	2000
SHEET THICKNESS(mm)	0.5-5	0.5-8	0.5-10	0.5-15	1.0-20	1.0-25
CAPACITY(kg/hr)	110	150	200	250	350	450
ELECTRICITY(Kw)	100	130	150	190	230	250
BLOWING AGENT	BUTANE GAS
DENSITY(kgs/m3)	25-50

application

1. BUILDING & CONSTRUCTION

Protection for water-proof layer

Sealer

Lining material for roof, wall and floor

2. INDUSTRIAL APPLICATION

Various kinds of insulation tubes & gaskets.

Air conditioner

3. PACKING & PACKAGING

Cap seal

Protection cover for household electric appliance, lights, watches etc

Cushioning material for glasses, foods and corner padding

4. SPORTS & MISCELLANEOUS GOODS

Pool cover

Life jacket

Camping mat

Carpet underlay

Protector
