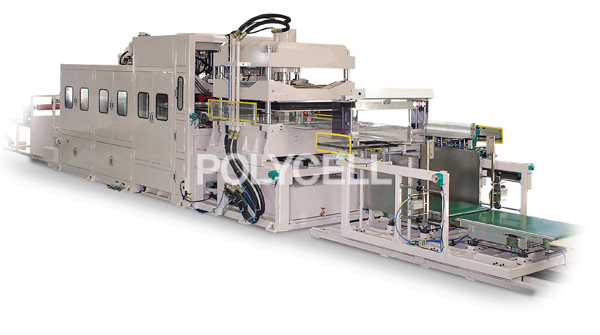

auto vacuum forming machine
ITEM/MODEL |
PKC-110/120 |
FORMING
AREA |
Max.
1100mm(W) *1200mm(L) |
FORMING
FORCE |
Max.
15ton
|
FORMING
CAPACITY |
900
shot/hr (Dry Cycle) |
FORMING
SYSTEM |
Hydraulic
Pressing & Plug Assistant |
|

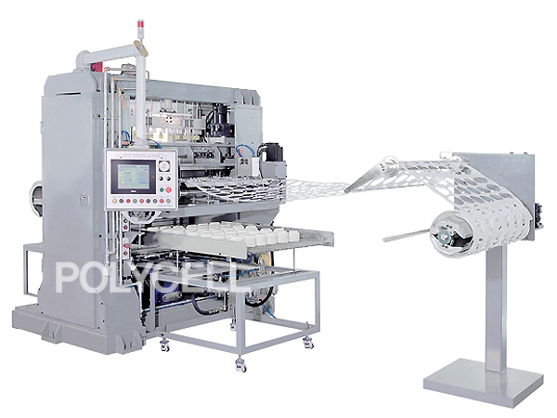

AUTO TRIMMING MACHINE
| MODEL NO |
PKC-TR 3100 |
| SIZE |
2400mm(L) x 2200mm(W) x 2100(H) |
| CUTTING HEIGHT |
150mm/Max |
| WEIGHT |
5 TON |
| MOVING LENGTH |
300mm/Max |
| SPEED |
100Cycle/Min |
| DIMENSION |
300 X 1000 mm/Max |
| SHEET THICKNESS |
0.15~1.5T |
| CONVEYOR MOTOR |
AC Servo Motor 1kw |
| OPERATION MOTOR |
AC Servo Motor 11kw |
|

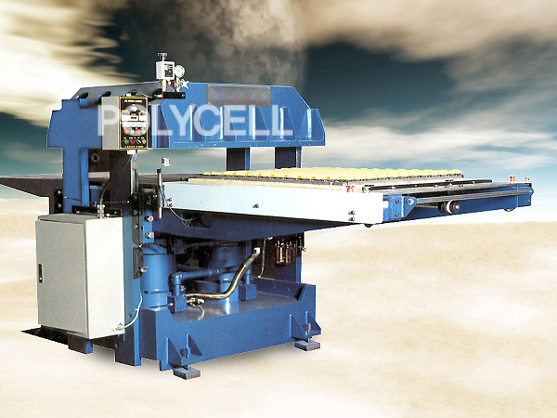

HYDRAULIC PRESS TRIMMING MACHINE
| MODEL NO |
PKC-100USM (HYDRAULIC PRESS) |
| WORKING SIZE |
1100mm X 1100mm |
| PRESSURE CAPA |
100 TON |
| WORKING LENGTH |
220 mm |
| CONVEYOR LENGTH |
1250 mm |
| DRIVING MOTOR |
10 HP |
|
|
